Question For Hammerli AP20 Owners

Post by Timberwerks »

I'm a new owner of a new Hammerli AP20 Pro. The question I have is, does the nipple of your pressure reducing block have what appears to be roll pins in the air inlet hole? This is the nipple the cylinder screws on to. I ask because I find it odd that Hammerli / Walther has a roll pin installed vs a proper sized hole to allow in air from cylinder and depress cylinder valve. I'd post a photo but I'm not near pistol at this time.

If question is unclear I'll post photo when I can. Everything else about the pistol is good / great quality & craftsmanship & is why I find this roll pin odd. Or perhaps I'm not understanding its function.

Thanks in advanced.
TenMetrePeter
Posts: 603
Joined: Sun Sep 04, 2016 10:59 am

Re: Question For Hammerli AP20 Owners

Post by TenMetrePeter »

These are good pistols but made to a price. If a roll pin fulfills the function of being...
- Hard metal
- Hollow
- Fits a drilled rather than reamed hole
- Probably never need to come out
then for production on a budget they are ideal.
Naturally they have a slit so they need to be entirely inside the sealed chamber.
The "Engineered" pin would need to be turned drilled hardened tempered and ground., and selected on tolerance. The hole would need to be drilled and reamed. Scrappage could be 30%.
Webley started to use them when Tempest replaced the all metal models.
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

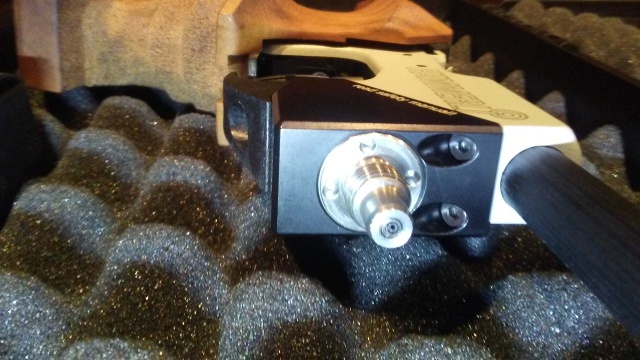

Thanks for your reply. I was able to take a photo this morning, actually looks like two roll pins, large & small. Verry pleased with my purchase but just curious if this is the norm for this inlet or if it was a quick fix during assembly. I haven't posted a photo from Photobucket for awhile so hopefully one of the below links work. Photobucket link is now removed.

Shutterfly photo: https://photos.shutterfly.com/story/id/90214567010
Last edited by Timberwerks on Sat Apr 14, 2018 8:12 am, edited 3 times in total.
TenMetrePeter
Posts: 603
Joined: Sun Sep 04, 2016 10:59 am

Re: Question For Hammerli AP20 Owners

Post by TenMetrePeter »

yep I don't change my opinion.

(That photo site just jerked with my phone.
Virus, schmirus!)
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

TenMetrePeter wrote:yep I don't change my opinion.

(That photo site just jerked with my phone.
Virus, schmirus!)

Sorry about that. I'll see if I can find another host for the photo.
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

Photo link is now via Shutterfly. I can't seem to insert photo directly here in post.

https://photos.shutterfly.com/story/id/90214567010
TenMetrePeter
Posts: 603
Joined: Sun Sep 04, 2016 10:59 am

Re: Question For Hammerli AP20 Owners

Post by TenMetrePeter »

At bottom click "Choose file". Then "Add the file" then "Place inline" where your cursor is.
Reduce pic below 256k in size first.
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

TenMetrePeter wrote:At bottom click "Choose file". Then "Add the file" then "Place inline" where your cursor is.
Reduce pic below 256k in size first.

Thanks!

I tried but because of my outed operating system the photo won't upload. I'm still using Windows XP. I can post text though.
David Levene
Posts: 5617
Joined: Mon Mar 01, 2004 12:49 pm
Location: Ruislip, UK

Re: Question For Hammerli AP20 Owners

Post by David Levene »

If your trying to attach the picture then we're having a bit of an issue on the total size of attachments on the board.

(If everyone can delete some of their old attachments that are no longer relevant it would be a great help)
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

Trying again.
Attachments
TenMetrePeter
Posts: 603
Joined: Sun Sep 04, 2016 10:59 am

Re: Question For Hammerli AP20 Owners

Post by TenMetrePeter »

David Levene wrote:If your trying to attach the picture then we're having a bit of an issue on the total size of attachments on the board.

(If everyone can delete some of their old attachments that are no longer relevant it would be a great help)
Al but one of mine now deleted.
kevinweiho
Posts: 949
Joined: Wed Oct 14, 2009 12:44 pm
Location: Costa Rica, Central America

Re: Question For Hammerli AP20 Owners

Post by kevinweiho »

A roll pin’s function is to secure a part in place. I can only assume Walther uses this method to lower manufacturing costs.

As long as the pistol is functional and not leaking, let it be.

If you’re still curious, ask the store where you purchased the pistol. Another member from the forum will probably chime in
and confirm whether his/her pistol has the roll pin in the cylinder valve.
TenMetrePeter
Posts: 603
Joined: Sun Sep 04, 2016 10:59 am

Re: Question For Hammerli AP20 Owners

Post by TenMetrePeter »

Sometimes primary design function is re-purposed successfully.
Wire paper clips to open CD drive.
Cable ties for hand cuffs
Ball bearings in paint cans.
Roll pins for air pistol valve probes.
Why manufacture something that costs pennies ftom stock?

You tube is full of "hacks" some of which are actually useful.
kevinweiho
Posts: 949
Joined: Wed Oct 14, 2009 12:44 pm
Location: Costa Rica, Central America

Re: Question For Hammerli AP20 Owners

Post by kevinweiho »

I guess sometimes...
Attachments
Timberwerks
Posts: 143
Joined: Mon Apr 07, 2014 8:57 pm
Location: Mequon,WI
Contact:

Re: Question For Hammerli AP20 Owners

Post by Timberwerks »

Thanks for the replies! At first I thought perhaps it was a bad air inlet found during assembly and this was a quick fix. But then, why not just grab another unit from the bin instead?
Still interested in hearing from AP20 owners or even LP400 owners. Could this be an easy way to use the LP400 nipple on the lower cost AP's?
