LP10 Red Dot Adapter

Loufish · Post by **Loufish** » Sun Mar 03, 2019 3:19 am

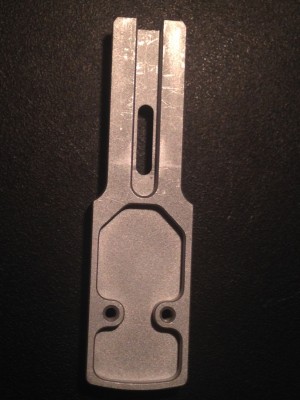

I can use some help. I searched but did not find the source of this adapter. I'm hoping one of you good folks can help with ID. Thanks much

Lou

Gwelo · Post by **Gwelo** » Sun Mar 03, 2019 4:45 pm

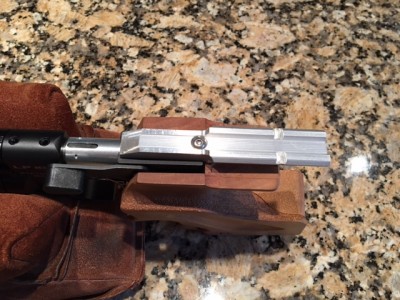

Probably a custom made mount for one of the small reflex sights, Docter, Burris, etc, or a small tube type sight shown below. Replaces the rear sight and extends the red dot to the rear to clear the loading arm/port. You can do the same with the mount below, just have to use the weaver adapter usually furnished with the sight.

Loufish · Post by **Loufish** » Mon Mar 04, 2019 4:02 pm

Thank you G. I'll try that.

Gwelo · Post by **Gwelo** » Mon Mar 04, 2019 5:42 pm

What sight do you want to use on your LP10?

Loufish · Post by **Loufish** » Mon Mar 04, 2019 9:28 pm

Burris or Docter, as well as others, the mount interfaces are the same.

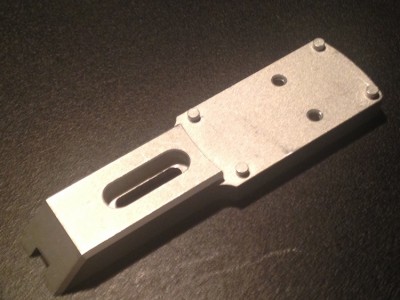

I'm pretty sure this is not a one-off, note the 'pins' are integral to the parent material and the back-side lightening.
Would you happen to know the source & PN for the modified adapter you show?
Thank you for taking the time to answer.

Gwelo · Post by **Gwelo** » Mon Mar 04, 2019 9:39 pm

The part you show looks like a die casting. Also could be a machined part that was bead or sand blasted. Where did you get the pics?

The part in my pics was machined by a member here. I have emailed him and will post when he replies. Hopefully he will see this thread and reply here.

Loufish · Post by **Loufish** » Tue Mar 05, 2019 3:20 am

My photo. The adapter mount came with my recent purchase of an LP10 with a Burris. Others (2) in the Club I shoot want a dot too for their Steyr's

Cast part - that is what I'm thinking too. There is not a single machine mark on it; they could have been erased by blasting as you said but then there are those pesky integral posts. I know they can be easily machined by CNC but that's a lot of bother for a one-off part. Molds are pricey; that's why I'm thinking there had to be a supplier out there that made them. One more hint - the corners are very sharp - not rounded like sand blasted aluminum

Thank you again for the help

Gwelo · Post by **Gwelo** » Tue Mar 05, 2019 1:00 pm

Sent you a pm with contact info on the fellow who makes the adapters I showed.

wasatch · Post by **wasatch** » Tue Mar 05, 2019 5:19 pm

There is also a weaver adapter made by Steyr but it slides on the shroud.
google image search: https://goo.gl/ra5GTR

Gwelo · Post by **Gwelo** » Tue Mar 05, 2019 5:43 pm

Kinda like this:

: IMG_7837.small.JPG (47.18 KiB) Viewed 1254 times

Loufish · Post by **Loufish** » Tue Mar 05, 2019 11:45 pm

Yeah, thanks all regarding Steyr mount - aware of that one.
Seeking specifically the maker of the one shown in 1st post.
Not found yet - my google-fu is weak...
